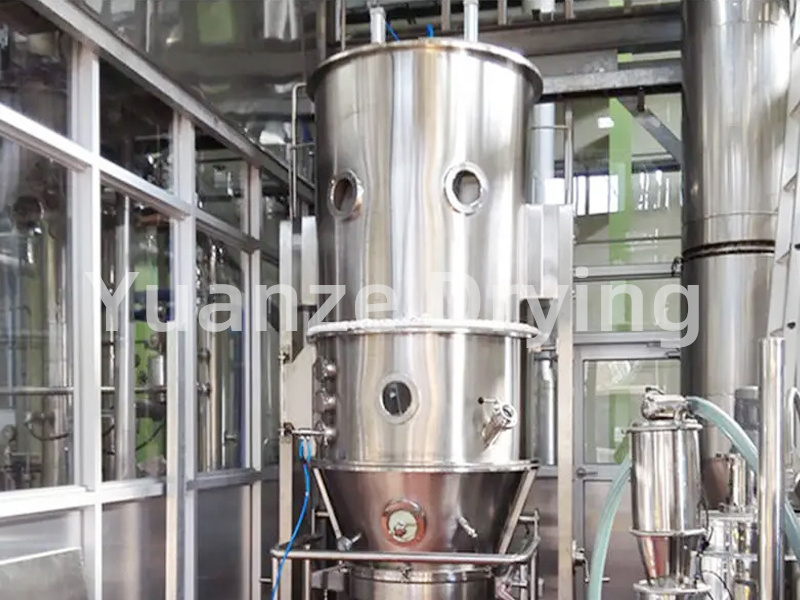

FG series vertical boiling dryer

FG series vertical boiling dryer

This machine is mainly suitable for drying powder or granular materials in industries such as medicine, food, and chemical industry. Fluidized drying, fast heat and mass transfer; Operate under closed negative pressure, without dust flying; Using anti-static filtering materials for safe operation;

Description

Principle

Fluidized drying, fast heat and mass transfer; On the basis of the GFG high-efficiency boiling dryer, this equipment adds a drying straight cut to make the material easier to dry;

● Operate under closed negative pressure without dust flying;

● Using anti-static filtering materials for safe operation;

● The equipment has no dead corners, is thoroughly cleaned, and has no cross contamination;

● Meet GMP regulatory requirements.

Application

This machine is mainly suitable for drying powder or granular materials in industries such as medicine, food, and chemical industry.

Technical Parameter

model		unit	3	5	30	60	120	200	300	500	1000
project		unit	3	5	30	60	120	200	300	500	1000
Raw material container	diameter	mm	300	400	700	1000	1200	1400	1600	1800	2200
Raw material container	volume	L	12	22	100	220	420	670	1000	1500	2500
production capacity	small	kg/batch	1.5	4	15	30	80	100	150	250	500
production capacity	big	kg/batch	4	6	36	72	140	240	360	600	1100
Steam consumption		kg/batch	12	23	70	140	211	282	366	465	800
air supply		M3/min	0.3	0.3	0.3	0.6	0.6	0.9	0.9	0.9	1.5
fan power		kw	2.2	4	5.5	11	18.5	22	30	45	75
temperature		℃	Automatic adjustment at room temperature~120 ℃
Material yield		%	＞99
TIME		min	15~30
Final moisture content		%	~0.2
noise		dB	≤75
Host height		mm	2100	2300	2500	3000	3300	3800	4000	4800	6200

Note: Some parameters may be adjusted according to different materials during design, and the design shall prevail.
