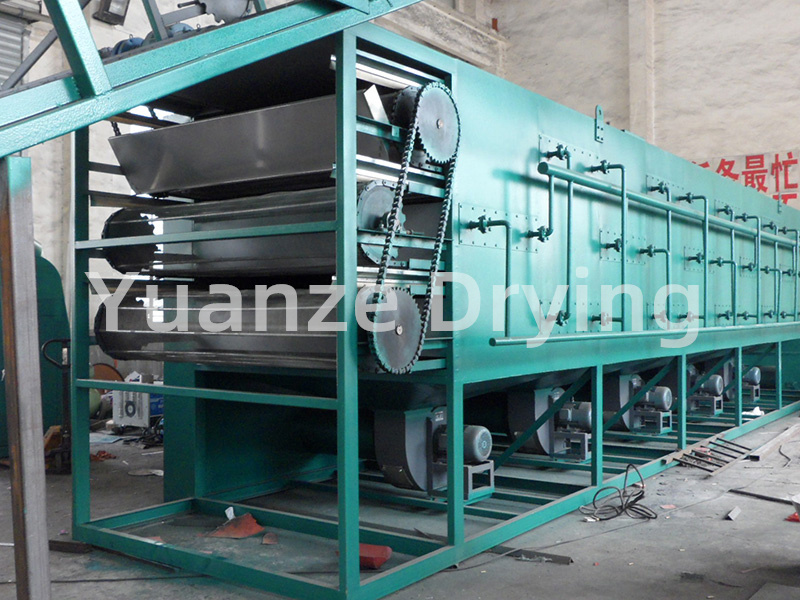

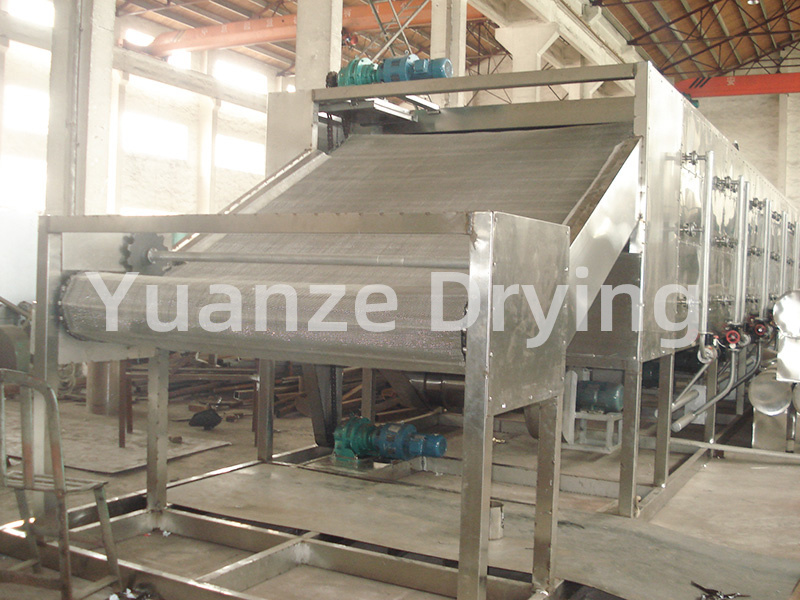

DW series multi-layer belt dryer
DW series multi-layer belt dryer
Product Introduction: The DW series multi-layer belt dryer is a continuous drying equipment used in batch production, used for drying sheet, strip, and granular materials with good breathability. It is particularly suitable for dehydrated vegetables, catalysts, traditional Chinese medicine slices, and other materials with high moisture content and temperature not allowed to be high; This series of dryers has fast drying speed, evaporation
Description
Product Introduction
The DW series multi-layer belt dryer is a continuous drying equipment used in batch production, used for drying sheet, strip, and granular materials with good breathability. It is particularly suitable for dehydrated vegetables, catalysts, traditional Chinese medicine slices, and other materials with high moisture content and temperature not allowed to be high; This series of dryers has the advantages of fast drying speed, high evaporation intensity, and good product quality. For dehydrated cake like paste like materials, they need to be granulated or made into strips before drying.
Technical Parameter
| model | DW3-1.2-8 | DW3-1.2-10 | DW3-1.6-8 | DW3-1.6-10 | DW3-2-8 | DW3-2-10 | ||
| Number of units | 4X3 | 5X3 | 4X3 | 5X3 | 4X3 | 5X3 | ||
| Drying section length m | 24 | 30 | 24 | 30 | 24 | 30 | ||
| Paving thickness mm | 10-80 | |||||||
| Operating temperature ℃ | 50~140 | |||||||
| Steam pressure Mpa | 0.2~0.8 | |||||||
| Steam consumption kg/h | 360-600 | 420-720 | 450-840 | 480-960 | 480-960 | 630-1350 | ||
| Heat Exchange Area m2 | 816 | 1020 | 1056 | 1320 | 1344 | 1680 | ||
| dry strength kgH2O/h | 150-450 | 220-550 | 240-600 | 280-750 | 280-750 | 350-900 | ||
| Total internal power KW | 30.8 | 37.4 | 42 | 51 | 56 | 68 | ||
| Total power of external units KW | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 | ||
| External dimensions m | 9.77X2.2X4.5 | 11.77X2.2X4.5 | 9.77X2.6X4.5 | 11.77X2.6X4.7 | 9.77X3.06X4.9 | 11.77X3.06X4.9 | ||
| Total weight kg | 4800X3 | 5780X3 | 5400X3 | 6550X3 | 6350X3 | 7800X3 | ||
Note: For drying temperatures between 250~350 ℃, our company can make special designs based on the actual materials. | ||||||||
